Plane Control

The Plane Control HAL manages the platform’s video and graphics plane resources, exposing each plane as a resource with readable capabilities.

It enables linking video sources - such as video sinks, HDMI input, and composite input - to a video plane. For graphics planes, graphics frame buffers are provided through IGraphicsFbProvider for EGL-based graphics display.

Each plane is configurable through a set of properties that clients can read or modify, either individually or in batches.

References

Info
Interface Definition planecontrol/current
Interface Version current
API Documentation TBD - Doxygen
HAL Interface Type AIDL and Binder
VTS Tests https://github.com/rdkcentral/rdk-halif-binder-test-planecontrol
Reference Implementation - vComponent TBC

Related Pages

Implementation Requirements

# Requirement Comments
HAL.PLANECONTROL.1 Shall provide APIs to manage the geometry, z-order, visibility and other properties of graphics and video planes for tunnelled and non-tunnelled operational modes of the video pipeline.
HAL.PLANECONTROL.2 Shall allow tunnelled video sources from a video decoder/sink, a HDMI input or a composite input to be linked to a video plane for display.
HAL.PLANECONTROL.3 Shall provide an API to expose the plane resources and their capabilities for a client to discover.
HAL.PLANECONTROL.4 Shall provide an API to atomically set multiple properties of a plane which take effect at the next available vsync.
HAL.PLANECONTROL.5 Shall allow only 1 source to be mapped to any given video plane.
HAL.PLANECONTROL.6 Shall provide an API to atomically update multiple video source to video plane mappings.
HAL.PLANECONTROL.7 Shall provide a graphics frame buffer provider API for graphics planes where plane type is GRAPHICS.
HAL.PLANECONTROL.8 Shall provide APIs to create, commit and destroy graphics frame buffers via IGraphicsFbProvider.
HAL.PLANECONTROL.9 Shall notify clients when committed graphics frame buffers are released and available for reuse via IGraphicsFbProviderListener.

Interface Definition

Interface Definition File Description
IPlaneControl.aidl Plane Control HAL interface which provides the central API for video and graphics plane management.
IPlaneControlListener.aidl Plane Control listener for callbacks.
IGraphicsFbProvider.aidl Graphics frame buffer provider interface for a graphics plane.
IGraphicsFbProviderListener.aidl Listener interface for graphics frame release callbacks from the graphics frame buffer provider.
AspectRatio.aidl Enum list of aspect ratios.
PlaneCapabilities.aidl Parcelable describing a single plane resource capabilities.
GraphicsFbCapabilities.aidl Parcelable describing graphics frame buffer provider capabilities for a graphics plane.
GraphicsFbInfo.aidl Parcelable describing graphics frame metadata (frame ID, pixel width, pixel height, stride and offset).
PlaneType.aidl Enum list of plane types.
Property.aidl Enum list of plane properties.
PropertyKVPair.aidl Parcelable of a single property key and value pair.
SourcePlaneMapping.aidl Parcelable of a single source to plane mapping.
SourceType.aidl Enum list of source types used in source plane mapping.

Initialization

The systemd hal-plane_control.service unit file is provided by the vendor layer to start the service and should include Wants or Requires directives to start any platform driver services it depends upon.

The Plane Control service depends on the Service Manager to register itself as a service.

Upon starting, the service shall register the IPlaneControl interface with the Service Manager using the String IPlaneControl.serviceName and immediately become operational.

Product Customization

The IPlaneControl.getCapabilities() returns an array of PlaneCapabilities parcelables to uniquely represent all of the plane resources supported by the vendor layer.

Typically, the plane index (resource ID) value starts at 0 for the first video plane and increments by 1 for each additional video plane, followed by the graphic plane(s).

The PlaneCapabilities parcelable returned by the IPlaneControl.getCapabilities() function lists all capabilities supported by a plane resource. - Concurrent control of plane resources is allowed by multiple clients. The RDK middleware is responsible for ensuring only 1 controlling client is active at any given time.

System Context

The Plane Control service provides functionality to multiple clients which exist inside the RDK middleware.

Typically, video planes are linked to video sources when a GStreamer pipeline is created in the RDK middleware. The geometry of the video planes can be manipulated by the Window Manager through a separate client connection.

Graphics planes may expose IGraphicsFbProvider for EGL-based graphics frame rendering and commit.

flowchart TD
    %% --- Components ---
    RDKClientComponent["RDK Client Component"]
    IPlaneControlListener["IPlaneControlListener"]
    IGraphicsFbProvider["IGraphicsFbProvider"]
    IGraphicsFbProviderListener["IGraphicsFbProviderListener"]

    subgraph Connections["Vendor Layer"]
        subgraph IPlaneControlHAL["Plane Control HAL"]
            IPlaneControl["IPlaneControl"]
        end

        subgraph OutputComponents[" "]
            VideoPlane0["Video Plane 0"]
            VideoPlane1["Video Plane 1"]
            VideoPlane2["Graphics Plane 2"]
        end
    end

    %% --- Function Calls Over Single Line ---
    RDKClientComponent -- getCapabilities() <br> getGraphicsFbProvider() <br> setVideoSourceDestinationPlaneMapping() <br> getVideoSourceDestinationPlaneMapping() <br> getProperty() <br> setProperty() <br> getPropertyMulti() <br> setPropertyMultiAtomic() <br> registerListener() <br> unregisterListener() --> IPlaneControl

    RDKClientComponent -- getCapabilities()
    createGraphicsFb()
    commitGraphicsFb()
    destroyGraphicsFb()
     --> IGraphicsFbProvider

    IPlaneControlListener --> RDKClientComponent
    IGraphicsFbProviderListener --> RDKClientComponent

    %% --- Wrapped Connections in a Subgraph ---
        IPlaneControl --> IPlaneControlListener
        IPlaneControl --> IGraphicsFbProvider
        IGraphicsFbProvider --> IGraphicsFbProviderListener
        IPlaneControl -.-> VideoPlane0
        IPlaneControl -.-> VideoPlane1
        IPlaneControl -.-> VideoPlane2

    %% --- Apply Colors ---
    classDef background fill:#121212,stroke:none,color:#E0E0E0;
    classDef blue fill:#1565C0,stroke:#E0E0E0,stroke-width:2px,color:#E0E0E0;
    classDef lightGrey fill:#616161,stroke:#E0E0E0,stroke-width:2px,color:#FFFFFF;
    classDef wheat fill:#FFB74D,stroke:#424242,stroke-width:2px,color:#000000;
    classDef green fill:#4CAF50,stroke:#E0E0E0,stroke-width:2px,color:#FFFFFF;
    classDef default fill:#1E1E1E,stroke:#E0E0E0,stroke-width:1px,color:#E0E0E0;

    RDKClientComponent:::blue
    IPlaneControl:::wheat
    IPlaneControlListener:::wheat
    IGraphicsFbProvider:::wheat
    IGraphicsFbProviderListener:::wheat
    VideoPlane0:::green
    VideoPlane1:::green
    VideoPlane2:::green

Resource Management

The IPlaneControl interface provides access to all of the plane resource instances offered by the platform.

Each plane resource instance is assigned a unique integer resource ID or index, which is used in the IPlaneControl function calls to indicate which plane is being accessed.

Any number of clients can access the IPlaneControl service and access plane settings.

The diagram below shows the relationship between the interface and resource instances.

graph

    %% --- Encapsulating Everything Inside "Audio Decoder HAL" ---
    subgraph Connections["Plane Control HAL"]
        IPlaneControl("IPlaneControl")

        %% --- Audio Decoder Manager Service Spawns Instances ---
        IPlaneControl --> ADI1("Video Plane <br> RESOURCE_ID = 0")
        IPlaneControl --> ADI2("Video Plane <br> RESOURCE_ID = 1")
        IPlaneControl --> ADI3("Graphics Plane <br> RESOURCE_ID = 2")
    end

    %% --- High Contrast Styling (Rounded Box Simulation) ---
    classDef background fill:#121212,stroke:none,color:#E0E0E0;
    classDef manager fill:#388E3C,stroke:#1B5E20,stroke-width:2px,color:#FFFFFF;
    classDef instance1 fill:#FFC107,stroke:#FF8F00,stroke-width:2px,color:#000000;
    classDef instance2 fill:#FF9800,stroke:#E65100,stroke-width:2px,color:#000000;
    classDef instance3 fill:#F44336,stroke:#B71C1C,stroke-width:2px,color:#FFFFFF;


    %% --- Apply Colors ---
    class IPlaneControl manager;
    class ADI1 instance1;
    class ADI2 instance2;
    class ADI3 instance3;

    %% --- Consistent Link Colors Per Instance ---
    %% Yellow for Instance 0
    linkStyle 0 stroke:#AA8800,stroke-width:2px;
    %% Orange for Instance 1
    linkStyle 1 stroke:#CC5500,stroke-width:2px;
    %% Red for Instance 2
    linkStyle 2 stroke:#CC2200,stroke-width:2px;

Plane Types and Fixed Configuration

For the 2 types of planes (video and graphics) there are fixed configurations which they are expected to hold.

Plane Type Fixed Configuration
Video If there is no video to display on a visible plane, then it shall render transparent black.
The z-order is dynamic only for video planes.
Primary video plane shall always be listed at resource index 0.
Graphics When the plane type is GRAPHICS, getGraphicsFbProvider() provides graphics frame creation, commit, and destroy operations.

Graphics Frame Providers

  • Plane Control supports graphics frame buffers via IGraphicsFbProvider.
  • Clients should first query IPlaneControl.getCapabilities() and confirm the target plane is of type GRAPHICS.
  • If supported, clients open the provider using IPlaneControl.getGraphicsFbProvider() and use provider APIs to create, render, commit, and destroy frames.

Graphics Frame Buffer Lifecycle

Use the following sequence for each graphics plane:

  1. Discover provider support: Call IPlaneControl.getCapabilities() and confirm the target plane is of type GRAPHICS.
  2. Open provider: Call IPlaneControl.getGraphicsFbProvider(planeResourceIndex, graphicsFbProviderListener).
  3. Create one or more frame buffers: Call IGraphicsFbProvider.createGraphicsFb(width, height, outInfo). The returned file descriptor is the graphics buffer memory, and outInfo provides metadata such as graphicsFbId, stride, and offset. Supported format and modifier values are defined in GraphicsFbCapabilities and should be obtained via IGraphicsFbProvider.getCapabilities().
  4. Render into the buffer: Use the returned graphics buffer and metadata with the client graphics stack (for example EGL/GL) to draw a frame.
  5. Commit for display: Call IGraphicsFbProvider.commitGraphicsFb(graphicsFbId) to queue the frame for presentation. This call is non-blocking.
  6. Reuse released buffers: Wait for IGraphicsFbProviderListener.onGraphicsFbReleased(oldGraphicsFbId, elapsedRealtimeNanos) before reusing a previously displayed buffer.
  7. Destroy buffers when no longer needed: Call IGraphicsFbProvider.destroyGraphicsFb(graphicsFbId) for each created buffer during shutdown or reconfiguration.

The number of simultaneously created buffers must not exceed maxGraphicsFrameBuffers, and created dimensions must not exceed maxGraphicsFrameBufferWidth and maxGraphicsFrameBufferHeight.

sequenceDiagram
    participant Client as RDK Client
    participant PC as IPlaneControl
    participant Provider as IGraphicsFbProvider
    participant Listener as IGraphicsFbProviderListener
    participant Plane as Graphics Plane

    Client->>PC: getCapabilities()
    PC-->>Client: PlaneCapabilities[] (type == GRAPHICS)

    Client->>PC: getGraphicsFbProvider(planeId, listener)
    PC-->>Client: IGraphicsFbProvider

    Client->>Provider: createGraphicsFb(width, height, outInfo)
    Provider-->>Client: ParcelFileDescriptor + GraphicsFbInfo(graphicsFbId)

    Client->>Client: Render into graphics buffer
    Client->>Provider: commitGraphicsFb(graphicsFbId)
    Provider->>Plane: Queue frame for display

    Plane-->>Provider: Previous frame released
    Provider-->>Listener: onGraphicsFbReleased(oldGraphicsFbId, elapsedRealtimeNanos)
    Listener-->>Client: Buffer available for reuse

    Client->>Provider: destroyGraphicsFb(graphicsFbId)

Video Planes

Video sources (video sinks, HDMI inputs, and composite inputs) can be mapped to destination video planes for presentation.

A video plane can only be mapped to one video source at a time, and any attempt to set additional video sources shall fail.

A call to the setVideoSourceDestinationPlaneMapping() allows for multiple sources and planes to be mapped and can perform complex operations such as plane swapping between main and PIP video.

The sequence of calls below shows how main video and PIP video can be mapped separately and then swapped.

Main Video on Plane 0

  • The main video using video sink 0 is displayed on video plane 0.
  • AV playback is started.
SourcePlaneMapping[] =
{
    sourceType = SourceType::VIDEO_SINK,
    sourceIndex = 0,
    destinationPlaneIndex = 0
}

2. PIP Video on Plane 1

  • The PIP video using video sink 1 is displayed on video plane 1.
  • AV playback is started.
SourcePlaneMapping[] =
{
    sourceType = SourceType::VIDEO_SINK,
    sourceIndex = 1,
    destinationPlaneIndex = 1
}

3a. Swapping Main and PIP Planes

  • First variant: The destination plane indices for main and PIP are swapped in a single call.
SourcePlaneMapping[] =
{
  sourceType = SourceType::VIDEO_SINK,
  sourceIndex = 0,
  destinationPlaneIndex = 1
},
{
  sourceType = SourceType::VIDEO_SINK,
  sourceIndex = 1,
  destinationPlaneIndex = 0
}

3b. Unmapping Main and Moving PIP

  • Second variant: The destination plane index for PIP is moved to plane 0 and main is unmapped.
SourcePlaneMapping[] =
{
    sourceType = SourceType::VIDEO_SINK,
    sourceIndex = 0,
    destinationPlaneIndex = -1 // -1 indicates unmapping
},
{
    sourceType = SourceType::VIDEO_SINK,
    sourceIndex = 1,
    destinationPlaneIndex = 0
}

Stopping Video Display

When video is being stopped, the video source must also be unmapped from the plane.

The plane unmapping can technically be performed before or after the video source is stopped.

The setVideoSourceDestinationPlaneMapping() function can be used to unmap one or more video sources from planes.

  • Video sink 0 is unmapped from plane 0.
SourcePlaneMapping[]=
{
    sourceType = SourceType::VIDEO_SINK,
    sourceIndex = 0,
    destinationPlaneIndex = -1
}

Z-Order

The default z-order for planes is linked to their resource ID (index).

The z-order can be changed by setting the ZORDER property on a plane.

Higher z-order planes display over the top of lower z-order planes.

A virtual background plane of opaque black or ultra-black (RGB=0,0,0 or YUV=0,0,0) shall be used to display when no plane pixel is visible above it.

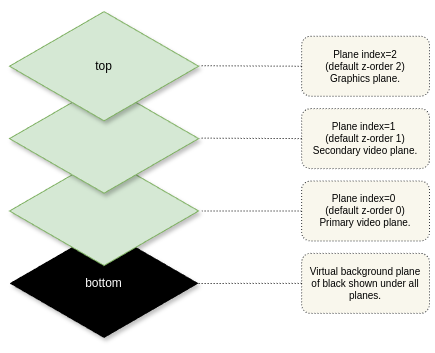

The diagram below shows a typical default plane resource configuration for 2 video planes and a single graphics plane.

z-order

Compositor

The compositor is a platform component responsible for blending the raster in the visible planes using z-order and alpha settings to produce a single output display image.

For STB devices the display image is scaled and output over HDMI and for TV devices it is scaled and displayed on the panel.

There is explicit HAL API exposed for the compositor as it is expected to be configured and managed privately by the vendor layer implementation based on the plane properties.

Plane Dimensions & Geometry Control

When properties affecting the plane geometry are changed by the client, they shall take immediate effect on the next available vsync.

For video planes, if there is already a video frame displayed on a plane that remains visible, then it shall be updated to reflect the new geometry settings.

The frameWidth and frameHeight in the Capabilities specify the pixel coordinate system of the plane reference frame, when used for positioning and scaling the plane. The plane properties X, Y, WIDTH and HEIGHT are all defined in terms of the reference frame geometry.

The maxWidth and maxHeight specify the maximum size the plane can be scaled to within the reference frame.

While a primary video plane commonly supports full screen display (maxWidth=frameWidth and maxHeight=frameHeight), it may not always be the case for other video planes.

If a plane has a size limitation (e.g. 1/4 screen) then the maxWidth and maxHeight must reflect this limitation.

There is no limitation on the positioning of a plane within its reference frame.

Plane Control Geometry

Alpha Blending

Where a plane is configured to use a translucent alpha setting (Property::ALPHA = 1..254), the porter-duff operation shall be OVER using pre-multiplied alpha.

Plane Display Latency

The vsyncDisplayLatency in PlaneCapabilities indicates the delay of video or graphics presentation changes before final output.

For example, video planes may have latency incurred by vendor specific PQ pipelines or MEMC processing and graphics planes may have latency incurred by vendor specific double buffering or composition.

Understanding the latencies for each plane is important when performing display synchronisation between different planes.

For example, when subtitles on the graphics plane need to be displayed with a particular video frame the application rendering the subtitles needs to understand any latency difference between a video plane and the graphics plane to compensate for any differences.
